Fläktassisterande andningsskydd

Face shield designed and developed based on market requirements and needs. Adapted for use together with fan unit SR 500, SR 500 EX or SR 700. It can also be used together with compressed air attachment SR 507. Robust screen with fold-up visor that gives the user comfortable and safe breathing and eye protection. Protects the breathing zone and the head. Impact- and scratch-resistant PC sight glass. Adjustable head position. Air deflector for optimal comfort. Supplied air keeps the visor fog-free. Replaceable flexible breathing tube. Standard attachment for earmuffs. Exchangeable protective foils are available as accessories. PC visor and visor frame withstand high speed particles 120 m/s at extreme temperatures, liquid splash and molten metal splash. Equipped with exhalation valve. Made of materials that allow use in harsh environments.
Contents: Face shield, breathing tube, protective film with clips, cleaning cloth and user manual.
Use temperature: -10°C - +55°C
Assigned protection factor: 100 (3A, 3B), 200 (TH3)
Nominal protection factor: 200 (3A, 3B), 500 (TH3)
Weight: 860 g

Approved/Certified according to:
EN 12941:1998 + A2:2008
EN 14594:2005
EN 166

(HTML text not available)

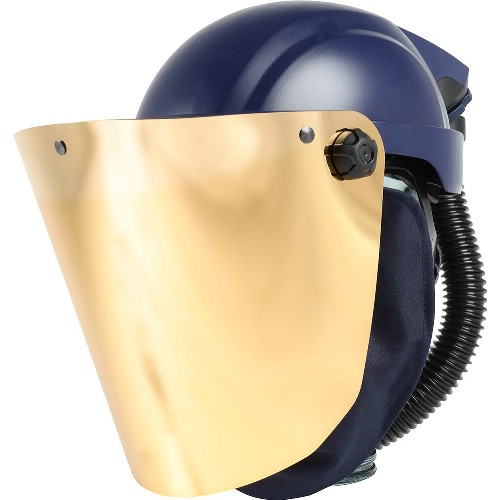

Complete protective helmet SR 580 with welding visor SR 584 which, together with the battery-powered fan SR 500 or SR 700 and approved filters, are part of Sundström's fan-assisted breathing protection system. Can also be used together with compressed air additive SR 507, this combination constitutes a breathing apparatus with continuous air flow for connection to compressed air. The combinations protect against harmful gases/particles, radiation and splashes during welding, cutting, grinding and similar work. The design makes them useful for work in narrow and hard-to-reach spaces. The equipment can be used as an alternative to filter protection in all situations where such is recommended. This applies in particular to heavy, hot or long-term work. Protective helmet with flip-up visor. Protects the breathing zone and the head. Adjustable head position. Replaceable flexible breathing hose that connects to the filter-equipped fan. Equipped with exhalation valve. Standard attachment for earmuffs. The positive pressure in the helmet's visor prevents particles and other contaminants from entering the breathing zone. The flip-up welding visor is delivered mounted on the helmet, with EN 10 welding glass and polycarbonate protective glass (dimensions 90x110 mm). Accessories in the form of automatic welding glasses, correction glasses, neck and chest protection and hose protection are available.
Contents: Safety helmet SR 580, breathing hose, welding visor SR 584 with degree of darkness EN 10, cleaning napkin SR 5226 and instructions for use.< BR>Usage temperature: -10°C - +55°C
Assigned protection factor: 100 (3A, 3B), 200 (TH3)
Nominal protection factor: 200 (3A, 3B), 500 (TH3)
Darkness level: EN 10
Weight: 1390 g
< BR>Approved/Certified according to:
EN 12941:1998 + A2:2008
EN 14594:2005
EN 397
EN 175:1997
EN 166

(HTML text not available)

(HTML text not available)

(HTML text not available)

Complete package with battery-powered fan unit SR 700 and full mask SR 200 with polycarbonate visor, which together with approved particle filters SR 510 P3 R or SR 710 P3 Rlter form a fan-assisted respiratory protection system. The fan is equipped with a filter and the filtered air is fed via a breathing tube to the face part. The overpressure that then forms prevents the penetration of surrounding impurities. Powered by the included 14.4 V Li-Ion battery, which provides an operating time of up to 6 h. Charging time approx. 2 h. Equipped with two particle filters. Start, stop and selection of operating mode are managed with the same operating button. Display with symbols for different operating conditions. Alarm with sound/light signals in the event of obstructions in the air flow. Automatic control of the air flow. The enclosure protection of the electronics is approved according to IP67. Full mask with excellent fit, high protective effect, eye protection and very good breathing comfort for the toughest areas of use. Made of silicone. Fits most face sizes. Spherical visor in scratch-resistant polycarbonate that provides a large field of vision. Equipped with three inhalation and two exhalation valves, which gives a very low breathing resistance. Materials and color pigments in the mask body are FDA and BGA approved for food, which minimizes the risk of contact allergies. Adjustable strap stand.
Contents: Full mask SR 200 PC with rubber strap stand, fan SR 700, filter adapter SR 280-3, breathing hose SR 551 rubber, standard battery, battery charger SR 513, rubber belt SR 504, 2-pack particle filter SR 510 P3 R, 2-pack filter adapter, 10-pack pre-filter SR 221, 2-pack pre-filter holder, flow meter, plug set, cleaning wipes and user manual.
Air flow: 175 l/min
Usage temperature: -10°C - +55°C
Assigned protection factor: 1000 (TM3)
Nominal protection factor: 2000 ( TM3)
Weight: 1550 g

Approved/Certified according to:
EN 12941:1998 + A2:2008
EN 12942 :1998 + A2:2008
EN 136:1998 class 3
EN 166:2001

Battery-powered fan unit that, together with filters and an approved facepiece, is part of Sundström's fan-assisted breathing protection system. Can be used as an alternative to filter protection in all situations where such is recommended. This applies in particular to heavy, hot or long-term work. The fan is equipped with a filter and the filtered air is fed via a breathing tube to the face part. The overpressure that then forms prevents the penetration of surrounding contaminants. Powered by the included 14.4 V Li-Ion battery, which provides an operating time of up to 7 h. Charging time approx. 2 h. Equipped with two filters/filter combinations. Start, stop and selection of operating mode are managed with the same operating button. Display with symbols for different operating conditions. Alarm with vibrations and sound/light signals in case of obstructions in the air flow. Automatic control of air flow with compensation for air pressure and temperature. The enclosure protection of the electronics is approved according to IP67. The fan unit can be used together with hoods SR 520, SR 530, SR 561, SR 562, SR 601, SR 602, screen SR 570, welding visor SR 570/SR 574 half mask SR 900, full mask SR 200, welding visor SR 592, helmet with visor SR 580 and welding visor/helmet with visor SR 584/SR 580.
Contents: Fan SR 500, 1 standard battery 14.4 V Li-Ion 2.25 Ah, battery charger SR 513, belt SR 508, 2 pcs particle filter P3R SR 510, 2 pcs filter adapters SR 511, 2 pcs pre-filter SR 221, 2 pcs pre-filter holder SR 512, flow meter SR 356, cleaning napkin SR 5226, 3 pcs plugs for fan and user manual.
Air flow: 175 l/min
Using temperature: -10°C - +55°C
Assigned protection factor: 200 (TH3) together with SR 520, 530, 561, 562, 570, 574, 580, 584, 592, 601, 602, 604
Assigned protection factor: 1000 (TM3) together with SR 200, 900
Nominal protection factor: 500 (TH3) together with SR 520, 530, 561, 562, 570, 574, 580, 584, 592, 601, 602, 604
Nominal protection factor: 2000 (TM3) together with SR 200, 900
Weight: 1650 g

Approved/Certified according to:
EN 12941:1998 + A2:2008
EN 12942:1998 + A2:2008

Battery-powered fan unit that, together with filters and an approved facepiece, is part of Sundström's fan-assisted breathing protection system. Can be used as an alternative to filter protection in all situations where such is recommended. This applies in particular to heavy, hot or long-term work. The fan is equipped with a filter and the filtered air is fed via a breathing tube to the face part. The overpressure that then forms prevents the penetration of surrounding contaminants. Powered by the included 14.4 V Li-Ion battery, which provides an operating time of up to 12 h. Charging time approx. 3 h. Equipped with two filters/filter combinations. Start, stop and selection of operating mode are managed with the same operating button. Display with symbols for different operating conditions. Alarm with vibrations and sound/light signals in case of obstructions in the air flow. Automatic control of air flow with compensation for air pressure and temperature. The enclosure protection of the electronics is approved according to IP67. The fan unit can be used together with hoods SR 520, SR 530, SR 561, SR 562, SR 601, SR 602, screen SR 570, welding visor SR 570/SR 574 half mask SR 900, full mask SR 200, welding visor SR 592, helmet with visor SR 580 and welding visor/helmet with visor SR 584/SR 580.
Contents: Fan SR 500, 1 HD battery 14.4 V Li-Ion 3.5 Ah, battery charger SR 513, belt SR 508, 2 pcs particle filter P3R SR 510, 2 pcs filter adapters SR 511, 2 pcs pre-filter SR 221, 2 pcs pre-filter holder SR 512, flow meter SR 356, cleaning napkin SR 5226, 3 pcs plugs for fan and user manual.
Air flow: 175-240 l/min
Using temperature: -10°C - +55°C
Assigned protection factor: 200 (TH3 ) together with SR 520, 530, 561, 562, 570, 574, 580, 584, 592, 601, 602, 604
Assigned protection factor: 1000 (TM3) together with SR 200, 900
Nominal protection factor: 500 (TH3) together with SR 520, 530, 561, 562, 570, 574, 580, 584, 592, 601, 602, 604
Nominal protection factor: 2000 (TM3) together with SR 200, 900
Weight: 1650 g

Approved/Certified according to:
EN 12941:1998 + A2:2008
EN 12942:1998 + A2:2008

Battery-powered fan unit that is explosion-proof and specially intended for use in explosive atmospheres. Included together with filters and an approved face piece in Sundström's fan-assisted breathing protection system. Can be used as an alternative to filter protection in all situations where such is recommended. This applies in particular to heavy, hot or long-term work. The fan is equipped with a filter and the filtered air is fed via a breathing tube to the face part. The overpressure that then forms prevents the penetration of surrounding contaminants. Powered by the included 13.5 V NiMh battery, which provides an operating time of up to 6.5 h. Charging time approx. 2 h. Equipped with two filters/filter combinations. Start, stop and selection of operating mode are managed with the same operating button. Display with symbols for different operating conditions. Alarm with vibrations and sound/light signals in case of obstructions in the air flow. Automatic control of air flow with compensation for air pressure and temperature. The enclosure protection of the electronics is approved according to IP67. The fan unit can be used together with hoods SR 520, SR 530, SR 561, SR 562, SR 601, SR 602, SR 604, visor SR 540 EX, SR 570 and helmet with visor SR 580 or full mask SR 200.
Contents: Fan SR 500 EX, 1 battery 13.5 V NiMh 2.1 Ah, battery charger SR 513 EX, belt, 2 filter adapters SR 511, 2 particle filters P3R SR 510, 2 frp pre-filters SR 221 , 2 pre-filter holders, flow meter SR 356, cleaning wipe SR 5226, Vaseline tube, plug kit and user manual. 10°C - +40°C
Assigned protection factor: 200 (TH3) together with SR 540 EX, SR 570, SR 580
Assigned protection factor: 1000 (TM3) together with SR 200
Nominal protection factor: 500 (TH3) together with SR 540 EX, SR 570, SR 580
Nominal protection factor: 2000 ( TM3) together with SR 200
Weight: 1840 g

Approved/Certified according to:
EN 12941:1998 + A2:2008< br>EN 12942:1998 + A2:2008
EN 60079-0:2012
EN 60079-11:2012
EN 13463-1:2009
ATEX 2014/34/EU

(HTML text not available)

Face shield with polycarbonate visor and hard head top. Folding visor with special coating that is impact and scratch resistant while also being chemical resistant. Headband with steering wheel adjustment for high comfort, low weight. Comfortable face seal against dust, spray fumes and chemicals. Increased control and comfort with valve so the user can direct the airflow inside the head cover. The design of the visor provides excellent side and downward vision with good optical clarity. Prepared for use with Versaflo fan assembly. Meets the highest performance requirements (TH3) for this type of product when used with specific Versaflo fan units.

Face shield with integrated protective helmet. Polycarbonate visor with special coating that is impact and scratch resistant while also being chemical resistant. Headband with steering wheel adjustment for high comfort, low weight. Can be used in conjunction with 3M Versaflo V-500E regulator, TR-300 battery powered fan unit and Jupiter battery powered fan unit. For electronic hearing protection, bracket Z3 AF/2 is used.
Protection classes:
SS-EN12941 TH3 connected to fan unit Versaflo TR-300 and Versaflo TR-600.
SS-EN12941 TH2 connected to fan unit Jupiter .
SS-EN14594 3B connected to regulators Versaflo V-500E, V-100E and V-200E.

Face shield with hard head top or integrated protective helmet. Polycarbonate visor with special coating that is impact and scratch resistant while also being chemical resistant. Headband with steering wheel adjustment for high comfort, low weight. Comes with complete Adflo fan unit that provides continuous air flow to the screen. The fan unit is used in combination with particle and gas filters for protection against specific organic, inorganic and acid gases. The filters are changed as needed. Particle filter indicator shows how much filter capacity you have left. The batteries can be charged either on site in the fan unit or separately.
H847720: Face shield with hard head top.
H857720: Face shield with integrated protective helmet.

Battery-powered fan unit that protects against solid particles. With 2 flow rates, 185 l/min and 205 l/min. Easy-to-use, versatile respirator for environments that require particle filtration. Easy to adjust and maintain. Highly efficient filter that captures dangerous dust, mist and smoke and can be used for troublesome gases and vapours. Li-Ion battery with charging indicator. Slim design and low weight make it excellent for use in tight spaces. The polluting air is drawn in through a filter and purified. The air is then brought through a breathing tube up to the top of the head. Acoustic and visual alarm for low air flow or low battery level. A window on the fan provides quick identification of which filter is being used. IP53.
Conforms to SS-EN12941
Contents:
Starter package TR-315E+: Fan unit TR-302E+, particle filter, pre-filter, standard belt, flow indicator, high capacity battery, battery charger incl. charging plate and self-adjusting breathing air hose.
Fan unit TR-302E+: Fan unit with filter cap and air flow indicator.

Battery-powered fan unit that protects against particles, gases or vapors, or against a combination of these depending on the type of filter used. Low-profile construction means that the center of gravity is kept close to the back which provides high comfort. Fan with selectable 3-stage solution for the air flow. Easily adjusted with a button with two-step function. The air flow is set between 190-205 l/min. Easy to clean. Acoustic and visual alarm for low air flow or low battery level. Many filter combinations, in front of the filter both pre-filter and spark arrester can be mounted. In normal use the fan is IP53 sealed, with cleaning plugs fitted the enclosure protection is IP67.
Conforms to Cat III, EN12941
Contents:
Starter Kit TR-619E: Fan unit TR-602E, A2P filter, filter cover, 10 pcs pre-filter, 2 pcs spark arrester, Easy Clean belt, high capacity battery, battery charger with one station, airflow indicator and self-adjusting breathing air hose.
Fan unit TR-602E: Fan unit, 2 spark arrestors, and airflow indicator.

Face shield with built-in battery-powered fan unit. For protection against particles. Comes complete with polycarbonate visor, fabric face seal, main filter and pre-filter, 2 replaceable visor covers, 6 hour head battery, battery charger, cotton head cover, airflow test disc and fabric storage bag.

With belt, 1/4 BSP female thread. Delivered without coupling.

Fresh air unit used together with Esab's welding helmets. Robust construction makes it suitable for all heavy duty welding applications. Provides proper protection against welding fumes and dust when welding, chiseling and grinding. Adjustable airflow from 170 l/min to 220 l/min to suit the environment and application. The airflow is indicated by the LED at the top of the unit. Audible and visual alarms for clogged filter and low battery level, giving the welder extra safety. Powerful Li-Ion battery pack that provides up to 8 h of use at air flow 220 l/min. Easy filter change.
Standard equipment: Fan unit, battery, intelligent charger, P3 filter, pre-filter, waist belt, air hose and Proban hose cover.
Dimensions (LxWxH):< /b> 185x100x160 mm.
Weight: 1000 g.
Tested and certified according to CE-EN12941 to be used together with < b>welding helmets Sentinel A50 (TH2), Warrior Tech (TH3), G50 (TH3), G40 (TH3), G30 (TH3) and F20 (TH2).

Sweatband for face shield SR 570.

Leather belt for fans SR 500 and SR 700. Metal buckle.

Protective foil for Sundström's face shield SR 540. 12-pack.

Battery charger for fan units SR 500 / SR 700.

Practical charging rack for charging 1-5 batteries for fan unit SR 500 and SR 500 EX. Made of ABS plastic. Charger not included.
Dimensions (WxDxH): 390x328x105 mm.

Carrying harness for fan unit SR 500 and SR 700. The harness gives the user a number of possibilities to carry the fan with the greatest possible comfort during different types of work. The fan can be worn at the back or between the shoulder blades. The back plate can be adjusted in 3 positions according to the height of the user. Made of polyester and TPE.

Breathing hose that fits Sundström's face shields SR 540 and SR 540 EX. Made of polyurethane and polyamide. Length 0.9 m.
