Borrmaskiner stationära

The drill head can be raised and lowered with a crank and rotatable 360° around the column to facilitate drilling in different positions. Gears made of steel or woven laminate, which provides quiet operation. Shafts of hardened steel. Coupling devices are hardened. The drill spindle is made of steel and can be mounted with ball and roller bearings. The roller bearing is placed around the spindle cone, which provides a stable setting of the tool. The spindle is balanced with a strong spring. The drill spindle can also be fitted with a threaded spindle nose and locking nut for fastening the chuck. Drill depth stop for spindle feed is mounted on the gear arm. Through this depth stop, three different drilling depths can be obtained at the same working pace. In this way, the entire downward movement of the spindle can be used. The table arm can be raised and lowered and rotated 360° around the pillar. The table is rectangular and as standard equipped with an oil stripe and T-groove. The column is made of steel, which means better rigidity for the machine as well as better precision and minimal deviations from the fixed angle between drill and table. Tool ejector is built-in and facilitates tool changes. Equipped with emergency stop, undervoltage release and motor protection.
1905-9179: Coordinator table FB 101 Work surface 450x242 mm. Length feed 240 mm. Cross feed 160 mm. With center for mounting table arm.
1905-8817: Tool kit MK 3. Machine vise 120 mm. jaws, 2 x T-slot nuts, Chuck 1-13mm B16, Mandrel MK3. Reduction sleeve MK3/MK2. Reduction sleeve MK3/MK1.
1905-9187: Coordinator table FB 102, Work surface 584x242 mm. Length feed 350 mm. Cross feed 160 mm. With center for mounting table arm.

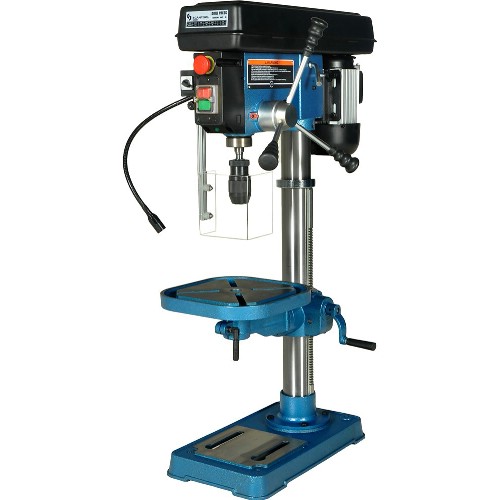

Belt-driven bench drill with powerful 750 W motor, 12 speeds and drill capacity 1-20 mm. Simple and stable construction that ensures easy operation and long service life. Raised and lowered table with tilt function. Integrated work lighting. Transparent protective screen with micro switch for extra safety. With safety switch and emergency stop in accordance with CE requirements. Supplied with B16 spindle and quick chuck with auto lock. Available in both 1-phase and 3-phase versions.
Model 16 AT with right and left hand (reversible).

Belt-driven column drilling machine with powerful 1100 W motor, 12 speeds and drilling capacity 1-32 mm. Right and left hand (reversible). Simple and stable construction that ensures easy operation and long service life. Raised and lowered table with tilt function. Integrated work lighting. Transparent protective screen with micro switch for extra safety. With safety switch and emergency stop in accordance with CE requirements. Supplied with B16 spindle and quick chuck with auto lock. 400 V, 3-phase.

Column drilling machine in a strong construction and with a high finish. Max drilling capacity 32 mm, maximum drilling depth 150 mm. Available with manual or automatic feeding, with or without coordinate table. Clear and simple control panel, for on/off, high and low speed and on/off for coolant. Equipped with separate main switch.

Column drilling machine in a strong construction and with a high finish. Max drilling capacity 42 mm, maximum drilling depth 150 mm. Available with manual or automatic feeding, with or without coordinate table. Clear and simple control panel, for on/off, high and low speed and on/off for coolant. Equipped with separate main switch.
