Gas nozzle with spatter guard, which prevents welding spatter from sticking and causing a short circuit in the gooseneck.

Rod-shaped remote control for stepless adjustment of the welding current. The adjustment knob can be accessed from both sides, making the remote control ideal for both left and right handed operation. The controller is fitted with a hanging hook and comes with 10m fixed cable with 8-pin connector.
Fits Rogue ES/ET 180i/200i Pro.

Fjärreglage till Fronius TP150RC/180RC/MW/TT 230i.
Längd: 5 m

Suitable for use with Kemppi MIG, TIG and stick welders (MMA).
7-pin connection.

Gas hood KEMPPI L57.
W014452 fits GX203G35, GX203G5, GX303W35, GX303W5, GX205G35, GX205G5, GX305W35, GX305W5, GX305WS6*.
W011478 fits GX303G35 , GX303G5, GX403W35, GX403W5, GX305G35, GX305G5, GX305GS6*, GX305GS8*, GX405W35, GX405W5, GX405WS6*, GX405WS8* N5, GX308GMN35, GX308GMN5, GX428W35, GX428W5, GX428W35N250, GX428W5N250, GX428WS8*.

Gas hood KEMPPI L60.
W015858 fits GX203G35, GX203G5, GX303W35, GX303W5, GX205G35, GX205G5, GX305W35, GX305W5, GX305WS6*.
W011472 fits GX403G35 , GX403G5, GX503W35, GX503W5, GX405G35, GX405G5, GX505W35, GX505W5, GX408GMN35, GX408GMN5, GX528W35, GX528W5, GX528W35N250, GX528W5N250

Gas hood KEMPPI MT.
Fits GX253G35, GX253G5, GX255G35, GX255G5.

Gas diffuser KEMPPI M10.
Fits GX203G35, GX203G5, GX303W35, GX303W5, GX205G35, GX205G5, GX305W35, GX305W5, GX305WS6*, GX303G35, GX303G5, GX403W35, GX403W5, GX305 G35, GX305G5, GX305GS6*, GX305GS8*, GX405W35, GX405W5, GX405WS6*, GX405WS8*, GX403G35, GX503W35, GX503W5, GX405G35, GX405G5, GX505W35, GX505W5, GX305GMN35, GX305GMN5, GX208GMN3 5, GX208GMN5, GX308GMN35, GX308GMN5, GX408GMN35, GX408GMN5, GX428W35, GX428W5, GX428W35N250 , GX428W5N250, GX528W35, GX528W5, GX528W35N250, GX528W5N250.

Gas diffuser KEMPPI M10, insulated.
Fits GX203G35, GX203G5, GX303W35, GX303W5, GX205G5, GX305W35, GX305W5, GX305WS6*, GX303G35, GX303G5, GX403W35, GX403W5, GX3 05G35, GX305G5, GX305GS6 *, GX305GS8*, GX405W35, GX405W5, GX405WS6*, GX405WS8*, GX403G35, GX403G5, GX503W35, GX503W5, GX405G35, GX405G5, GX505W35, GX505W5, GX305GMN35, GX305GMN5, GX208GM N35, GX208GMN5, GX308GMN35, GX308GMN5, GX408GMN35, GX408GMN5, GX428W35, GX428W5 , GX428W35N250, GX428W5N250, GX528W35, GX528W5, GX528W35N250, GX528W5N250, GX428WS8*.

Thread M6 x 27 CuCrZr / M8 x 37 CuCrZr.

Contact nozzle for Fronius MTG and MTW welding guns.

Contact nozzle 1.0 C1 standard M10.
Fits GX203G35, GX203G5, GX303W35, GX205G35, GX205G5, GX305W35, GX305W5, GX305WS6* GX303G35, GX303G5, GX403W35, GX403W5, GX 305G35, GX305G5, GX305GS6*, GX305GS8*, GX405W35, GX405W5, GX405WS6*, GX405WS8* GX305GMN35, GX305GMN5 GX208GMN35, GX308GMN35, GX308GMN5 GX428W35, GX428W5, GX428W35N250 428W5N250

Contact nozzle KEMPPI 1,2 C1 standard M10.

Fits GX303G35, GX303G5, GX403W35, GX403W5, GX305G35, GX305G5, GX305GS6*, GX305GS8*, GX405W35, GX405W5, GX405WS6*, GX405WS8 *, GX403G35, GX503W35, GX503W5, GX405G35, GX405G5, GX505W35, GX605W5 GX408GMN35, GX408GMN5 GX528W35, GX528W5, GX528W35N250, GX528W5N250 GX60 8W5 GX428WS8*

Contact nozzle M6x28.

A dedicated water cooling unit for Fronius TPSI.
Can either be included in a package or retrofitted to the TransSteel 3500 / 5000.

Coolant for ESAB welding equipment. The special properties of the coolant provide improved cooling properties and reduce problems with clogging of pumps and couplings. Ready-mixed and biodegradable. Avoid mixing different types of coolant. When topping up or changing coolant in welding equipment with another coolant, it is recommended that the system is first flushed clean.

Feed wheel with V-groove for 0.8/0.9 - 1.0 mm wire. Fits Origo Mig C280/C340 PRO 4-wheel, Origo Mig C420 PRO.

The strong construction in galvanized sheet makes it resistant in tough environments. Electronically controlled feeding ensures that perfect and stable arc tension is maintained. The four-wheel feed mechanism with grooves in both pressure and feed rollers provides stable wire feed and low pressure on the wire, which reduces interference. The feeder is equipped with 30 mm feed rollers and is adapted for both solid and tubular wires up to 1.6 mm. All setting functions are easily visible on the sloping front. Logic-Pump automatically starts the cooling water as soon as the water-cooled gun is connected and prevents overheating. The panel has a digital V/A meter and has switches for cold wire feeding or gas flushing. The front panel is easy to set up and the controls are precise. Balance arm, wheel set or lifting eye are easily mounted. If mini-mechanization with e.g. Miggytrac or Railtrac is needed, it is easily connected to the feeder plant's fixed socket. The feeders are manufactured according to standard IEC 60974-5 and have a low operating voltage, 42V AC. An overload circuit protects against downtime. Easy to replace wear parts in the feed mechanism, no tools needed for this. An adjustment dial for pressure wheel adjustment. All electronics have been placed in a separate, protected space. 2/4 stroke, facilitates welding. Crater filling function, reduces the risk of welding defects. Adjustable afterburn time, ensures correct stick-out. Creep start function, optimizes start. Digital instruments, provide easy reading. Quick connectors, providing short installation time. LogicPump, patented, ensures water cooling. TrueArcVoltage System, measures and corrects to the correct arc voltage.

Portable and durable 1-phase welding machine for all welding methods. Weighs 25.5 kg and has a case with five handles. Can tackle all jobs in the workshop or out on the jobsite. Capable of welding methods SMAW/MMA (Stick), GMAW (MIG/MAG), FCAW (Flux Core), GTAW-AC (TIG AC), GTAW-DC (TIG DC) and GTAW-P (Pulsed TIG). Advanced AC TIG functions such as high frequency start, frequency setting up to 400 Hz, balance control. DC TIG also has pulse mode to 500 Hz. sMIG (smart MIG) function that continuously learns and adapts to the operator's welding technique to provide a stable arc and repeatable weld strings, increasing productivity for experienced welders and reducing training time for new welders. Multi-language TFT display, four programmable memory locations for each welding method, multi-language selection, inductance control, gas pre-flow and gas post-flow and spot welding setting, which allows fine-tuning of welding strings for the best possible performance. Suitable for agriculture, pipe construction work, repair and maintenance, light manufacturing and body work.
Standard equipment: 3 m power cable and plug, MXL 201 MIG torch 3 m, SR-B 26 TIG torch with accessories (3 clamping sleeves 1.6-3.2 mm, 3 electrode nozzles 1.6-3.2 mm, 1 long torch cover, 3 gas caps and 3 gold tungsten 1.6-3.2 mm), electrode holder, return cable and clamp 3 m, gas hose with quick coupling 4.5 meters, drive rollers for 0.6, 0.8 and 1.0 mm, outlet piping 0.6-1.2 mm and thickness measuring tool.

Welding machine developed for MIG/MAG welding with solid wire and tubular wire, electrode welding (MMA) and TIG welding with Lift TIG start. Rebel is connected to 1-phase 230V mains voltage. Complete package for welding both structural steel, aluminum and stainless steel. The advanced sMIG function continuously learns the user's welding technique and adapts to provide a stable arc and excellent, repeatable welds. Large color TFT display provides a clear view of welding parameters and settings even from a distance, even in the distance and strong sunlight. The display is equipped with advanced functions that, among other things, provide access to the manual and spare parts list. Robust construction with five handles, which act as a protective frame for the panel and connections. Chassis construction in steel.
Standard equipment: Welding gun MXL 200 3m with Euro connection. Welding and return cables 3m with clamp MP 200 and electrode holder Handy 200 (screw). Gas hose 4.5 m with quick coupling (female). Contact nozzle and feed rollers (V-groove) for 0.6-1.0mm wire. Mains cable 3 m with plug. Solid wire OK AristoRod 12.50 0.8 mm on 200 mm spool.

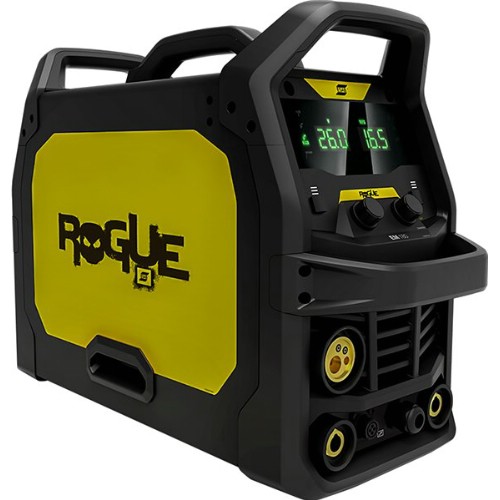

The ESAB Rogue EM 180 PRO is an inverter-based MIG/MAG welding system designed to meet all your needs for a variety of welding projects. From light manufacturing to repair and maintenance. The system has an industrial-class arc performance and setting controls that allow the welder to fine-tune the arc characteristics based on the materials being welded.
Included: 180 A MIG/MAG power source with mains cable 16 A plug 3 m, MXL 201 MIG Torch Euro 3 m, Return cable, OKC 35-50 16 mm2, 3 m, Gas hose with quick connect/open 4.5 m, ESAB OK AristoRod 12.50 0.8 mm, 1 kg. Feed wheel 0.6/0.8 mm, V (mounted), 0.8/0.9 mm V and 0.8/0.9 mm VK, safety instructions.
Protection class:  ;IP23S

Inverter-based multi-process welding system designed to meet all your needs for varied welding projects. From light manufacturing to repair and maintenance. The system has industrial-grade arc performance and settings that allow fine-tuning of the arc characteristics based on the materials being welded. The equipment weighs only 16.7 kg, with a 1-phase 230 V input and compatibility with 10 kVA generators giving you maximum flexibility and portability. MIG/MMA/TIG.
Included: 210 A multi-process power source with mains cable 16 A connector 3 m, MXL 201 MIG welding gun with Euro connection, 3 m. Return cable set, OKC 35-50 16 mm2, 3 m. Electrode holder Handy 200 A for demanding applications 50 mm OKC 3 m. Gas hose with quick coupling 4.5 m. ESAB OK AristoRod 12.50 0.8 mm 1 kg. ESAB GoldRox Electrode, 2.5 × 350 mm 1 kg. Feed wheels 0.6/0.8 mm V (assembled), 0.8/0.9 mm V and 0.8/0.9 mm VK. Safety instruction.
Protection class: IP23S

Den kompakta svetsinvertern Rustler MIG PRO är det rätta valet för vanliga svetsutmaningar. Den senaste invertertekniken kombinerar låg energianvändning med optimerad svetsprestanda. Svetskitet inkluderar en strömkälla med en 4 meter lång nätkabel (3-fas 16 A stickpropp), 4 meter lång Exeor 315 R4 svetspistol med inbyggd fjärrkontroll, 3 meter lång återledarkabel, 4 meter lång gasslang med snabbkoppling samt drivrullar för 0,9/1,0 och 1,2 mm tråd. Rustler är kapabel att svetsa vanliga material med optimerade ljusbågsprogram för stål, rostfritt stål, aluminium, MIG-lödning och fluxfyllda rörtrådar. Trådmatningen är jämn tack vare en robust och pålitlig 4WD-matningsmekanism. Synergimodellen låter dig ställa in materialtjockleken för perfekt balanserade svetsparametrar, vilket gör att även mindre erfarna svetsare kan producera optimala svetsar. Maskinhöljet är pålitligt och har förbättrats ytterligare med ett flexibelt förvaringssystem för tillbehör, där användaren kan förvara och skydda andra verktyg de behöver ha till hands. Ytterligare funktioner inkluderar inspektionsfönster, invändigt upplyst utrymme, svetspistolhållare och kabelhantering för en effektiv och bekväm arbetsmiljö. Rustler EM 280C PRO, en 280 A (vid 40%) MIG/MAG strömkälla med möjlighet för MMA (250 A vid 40%). Rustler EM 350C PRO, en 350 A (vid 40%) MIG/MAG strömkälla med möjlighet för MMA (320 A vid 40%). Rustler EM 350C PRO SYNERGIC, en 350 A (vid 40%) MIG/MAG strömkälla med möjlighet för MMA (320 A vid 40%). Optimerade synergikurvor för stål, rostfritt stål, aluminium, MIG brazing och fluxfyllda rörtrådar.

Inverter-based power source. Optimal for welding in structural steel and stainless steel with requirements for simplicity and good welding properties. Reliable and powerful power source designed for rough and demanding MIG/MAG, MMA and TIG welding (with LiveTig™ start) and carbon arc gouging (Warrior™ 500i). Well-proven technology together with ESAB-developed software provides constant and stable welding properties with both solid and tubular wire. Soft and pleasant arc. Warrior™ 400i/500i are combined with Warrior™ Feed 304 feeders.
Delivery contents: 3 m mains cable with connector (32A) and 5 m return cable with clamp.

Caddy™ Arc 151i/201i A33 are compact 1-phase 230V inverter-based welding power sources for MMA and TIG welding (with LiveTig™ start).
Active PFC circuit allows most Ø 3.2 mm electrodes to be welded with only 10 A slow fuse.
Adjustable Hot-start - simplifies ignition and minimizes starting problems.
Adjustable Arc-force - regulates the intensity of the arc which gives an improved welding quality.
ArcPlus™ II - optimizes the welding characteristics, improves the welding quality . 100 m, giving a large working area.
Two memory positions for MMA and two for TIG welding.
IP23 approved, corrosion resistant, flame and shockproof and equipped with heavy-duty OKC 50 cable connections for welding under the toughest conditions environments, both indoors and outdoors.
Standard equipment: 3 m welding and return cable with clamp and electrode holder Handy 200 (screw) and 3 m mains cable with connectors.

The Renegade ES 300i is an inverter power source for MMA and LiveTIG welding with an extremely high power/weight ratio. Its compact format makes it easy to carry and take with you to any workplace. It also has a high intermittency factor and can handle long mains and welding cables. Robust composite housing. Automatic detection of the mains voltage and can be connected to 3-phase mains between 230 V and 480 V. For professional MMA welding with electrodes up to 6 mm with a high intermittency factor, 40% at 300 A. Ideal for welding in high ambient temperatures. The power source automatically sets optimal start and stop parameters based on the set welding current. With the Cellulose function activated, a higher arc voltage is provided, which gives fantastic properties when welding with cellulose electrodes. 3 parameter memories for fast and easy access to welding parameters.
Standard equipment: 3 m mains cable with connector.

The Renegade ES 300i is an inverter power source for MMA and LiveTIG welding with an extremely high power/weight ratio. Its compact format makes it easy to carry and take with you to any workplace. It also has a high intermittency factor and can handle long mains and welding cables. Robust composite housing. Automatic detection of the mains voltage and can be connected to 3-phase mains between 230 V and 480 V. For professional MMA welding with electrodes up to 6 mm with a high intermittency factor, 40% at 300 A. Ideal for welding in high ambient temperatures. The power source automatically sets optimal start and stop parameters based on the set welding current. With the Cellulose function activated, a higher arc voltage is provided, which gives fantastic properties when welding with cellulose electrodes. 3 parameter memories for quick and easy access to welding parameters.
Standard equipment: Shoulder strap, 5 m welding and return cable with clamp and electrode holder Handy 300 (screw) and 3 m mains cable with connector.

Renegade ES is a professional 1-phase, MMA and Live TIG welding machine with the most resistant IP23 housing designed for use in demanding environments. Equipped with a high-quality multi-point carrying strap, the Renegade ES is ready to move with you when portability is required. In addition, a built-in active PFC circuit provides an uninterrupted power supply, even with long extension cables (up to 100 m). The Renegade ES has been designed to weld with all types of electrodes, including 6010 cellulose. The user has direct access to parameters and memory buttons, which makes the machine very easy to work with.
Supplied with: Power source 3 m mains cable with plug, 3 m welding cable with electrode holder and shoulder strap.

Renegade ET is a professional 1-phase TIG and MMA welding machine with high frequency (HF) start and the most resistant IP23 housing designed for use in demanding environments. Equipped with a high-quality multi-point carrying strap, the Renegade is ready to move with you when portability is required. The Renegade ET has a built-in active PFC circuit that allows it to work perfectly even with a poor quality power supply and with very long extension cables (up to 100m). Welding quality is a priority in this range, and further supported by direct access to wide parameter choices on simple and intuitive user interface makes the machine very easy to work with.
Supplied with: power source, return conductor 3 m, SR -B 26 burner 4 m, gas hose 4 m and shoulder strap.

Robust and durable welding rectifier with the latest electronics which ensures a precise and even arc. Provides a smooth direct current (DC) voltage that allows it to be used on a variety of metals, such as alloy and non-alloy steel, stainless steel and cast iron. Adjustable Arc Force and Hot Start settings help the user find exactly the right arc for each job. Digital microprocessor controls all functions precisely and provides first-class welding performance across the machine's full amperage. Can be used with electrodes up to Ø 4.0 mm. PFC ensures a stable arc, resistant to power fluctuations even when working with long extension cables. Can run TIG welding using "Lift TIG". If the power sources are equipped with an optional TIG torch with built-in gas valve and regulator, as well as a gas bottle, it is possible to weld unalloyed steel or stainless steel with or without filler material. Suitable for use with generators (7 kW recommended). Analogue remote socket. Protection class IP23S.
Standard equipment: 3 m mains cable with plug, 3 m return conductor with ground clamp, electrode holder and shoulder strap.

Robust and durable welding rectifier with the latest electronics which ensures a precise and even arc. Provides a smooth direct current (DC) voltage that allows it to be used on a variety of metals, such as alloy and non-alloy steel, stainless steel and cast iron. Adjustable Arc Force and Hot Start settings help the user find exactly the right arc for each job. Digital microprocessor controls all functions precisely and provides first-class welding performance across the machine's full amperage. Can be used with electrodes up to Ø 4.0 mm. PFC ensures a stable arc, resistant to power fluctuations even when working with long extension cables. Can run TIG welding using "Lift TIG". If the power sources are equipped with an optional TIG torch with built-in gas valve and regulator, as well as a gas bottle, it is possible to weld unalloyed steel or stainless steel with or without filler material. Suitable for use with generators (7 kW recommended). Analogue remote socket. Protection class IP23S.
Standard equipment: 3 m mains cable with plug, 3 m return conductor with ground clamp, electrode holder and shoulder strap.

Adjustable ignition current for soft/hot start, dynamics and characteristics for cellulose electrodes. The TransPocket 150 has new features such as adaptation to limited mains capacity, MMA welding with pulse, adjustable limitation of arc voltage for distinct welding ends. Separate setting menu for TIG functions. RC version with remote control outlet.
A strong, durable, ergonomically designed housing with smartly designed intakes and channels for cooling air. It protects the electronics and control panel against impacts, shocks, dust and moisture. Excluding cable set.
Mains voltage: 230 V, 50/60 Hz
Mains fuse (slow): 16 A
Max primary current: 21 A
Max primary power: 13 A
Cos phi: 0 .99
Welding current range (MMA / TIG): 10-150 A / 10-150 A
Welding current:
MMA (10 min/40°C): 150 A 25% / 110 A 60% / 90 A 100%
TIG (10 min/40°C): 150 A 25% / 100 A 60% / 80 A 100%
Idle voltage: 83 V
Working voltage (MMA / TIG): 20.4-26 V / 10.4-16 V
Protection class: IP23
Cooling: AF
Dimensions (LxWxH): 365x130x285 mm
Weight: 6.5 kg

MMA welding with protected panel with very good ease of use. Several different setup options in the background menu. (Soft-Start/HotStart, anti-stick, dynamics, auto-off time, 2-stroke/4-stroke mode). Digital display. Low energy consumption and automatic shutdown (ECO Mode). Optimized ignition and welding characteristics. Remote connection for tig handle with U/D function and remote control. Protected USB connection, possible to update with new and special processes. Excluding cable set.
Mains voltage: 230 V, 50/60 Hz
Mains fuse (slow): 16 A
Max primary current: 21 A
Max primary power: 13 A
Cos phi: 0.99
Welding current range (MMA / TIG): 10-150 A / 10-150 A
Welding current:
MMA (10 min/40°C): 150 A 25% / 110 A 60% / 90 A 100 %
TIG (10 min/40°C): 150 A 25% / 100 A 60% / 80 A 100%
No-load voltage: 83 V
Working voltage (MMA / TIG): 20.4-26 V / 10.4-16 V
Protection class: IP23
Cooling: AF
Dimensions (LxWxH): 365x130x285 mm
Weight: 6.5 kg

TransPocket 2500 är idealisk för användning både ute på fältet och i produktion. Dess lätta vikt och bärhandtag gör den enkel att transportera samtidigt som den robusta design gör den både stötsäker och tålig. De högt placerade ventilationsöppningarna hindrar vatten från att komma in i strömkällan, och det integrerade filtret ger ett säkert och tillförlitligt skydd mot smuts.

Strömkällorna drivs med trefasström och är generator-kompatibla. Det gör att de alltid är redo oavsett var i världen du jobbar. Dessutom är de idealiska för användning inom sektorer som sträcker sig från anläggningskonstruktion, containerkonstruktion, stålkonstruktion, maskinteknik, byggbranschen och byggindustrin till konstruktion av kemiska anläggningar, ledningskonstruktion och skeppsbyggnad - för att bara nämna några få. Fördelar med TransPocket *En digitalt styrd svetsmaskin med 250 A och 350 A *Säkerställer en stabil båge, även vid t.ex. upp till 100 meter långa huvudströmsledningar *Kan svetsa alla typer av elektroder upp till 5 mm i diameter *Har ett förstärkt hölje *Är fortfarande kompakt, lätt och portabel

(HTML text not available)

For MIG-MAG welding guns. Keeps contact pipes and gas nozzles clean from welding spatter. The paste is silicone-free and long-lasting. Dip the nozzle in the paste, Supplied in a can.

A welding paste that prevents welding spatter from sticking thanks to the creation of a heat-resistant layer. The welding gun's hot gas nozzle must be dipped 20-25 mm into the paste for it to work. Apply the paste on tools and fixtures with a brush. To prevent blockage in the gun nozzle, the gun should be cleaned after use. hung with the nozzle downwards. The paste is odorless and contains no solvents, silicone or caustics.

For tube wire or core wire with spool type 76,77.
EN 759:B300

Grinding fluid for use together with Esab G-Tech electrode grinding art no 0700009880. Binds dust that arises when grinding tungsten electrodes intended for TIG welding. Cools and acts as a lubricant during the grinding process.
