Complete welding helmet with automatically dimming welding glasses. Welding helmet with high comfort and low weight, headband with self-adjusting forehead relief, adjustable air channel system and face seal with easy and safe adjustment. Designed for heavy duty high current welding such as MMAW, MIG/MAG, TIG welding as well as plasma cutting and grinding. Flip-up function that makes it easy to switch between welding and grinding. Welding glass with adjustable dark density grades 5 (cutting) and 8-14. Bright mode with density level 3. Turnover time from light to dark in 0.1 ms. Viewing surface when welding 73x109 mm, viewing surface for grinding visor 170x104 mm. Natural Color technology, colors become clearer and more realistic in both light and dark mode. Also provides a more realistic field of view for better control over the welding arc. Variable Color technology, choose between shades of natural (A), cool (B) or warm (C) for dark mode. Choose yourself which color tones give the best contrast when welding and feel most comfortable to the eyes. Easy-to-use control panel, where you manage the functions easily. Powered by 1 pc 3 V Lithium battery (CR2450). The welding glass is also equipped with a Bluetooth function, easily paired with a smartphone. With the 3M Connected Equipment app, there is access to additional functions; Program up to ten memory settings (dark density, sensitivity, delay, etc.). Easy to keep a log in the app of the maintenance of your welding helmet. Statistical information immediately: when your welding glass was first activated, how long it has been in operation, hours in dark mode, hours in light mode and number of operating cycles (on/off). Access the user manual and accessory lists. Supplied complete with welding helmet G5-01, welding glass G5-01VC.
Complies with EN 175:B, EN 379, EN 166:B. Classification 1/1/1/2.

Complete package with welding helmet G5-01, auto-dimming welding glasses G5-01VC and Adflo fan-assisted respirator.
Welding helmet with high comfort and low weight, headband with self-adjusting forehead relief, adjustable air channel system and face seal with easy and safe adjustment. Designed for heavy duty high current welding such as MMAW, MIG/MAG, TIG welding as well as plasma cutting and grinding. Flip-up function that makes it easy to switch between welding and grinding while maintaining fan-assisted breathing protection.
Welding glasses with adjustable dark tightness degrees 5 (cutting) and 8-14. Bright mode with density level 3. Turnover time from light to dark in 0.1 ms. Viewing surface when welding 73x109 mm, viewing surface for grinding visor 170x104 mm. Natural Color technology, colors become clearer and more realistic in both light and dark mode. Also provides a more realistic field of view for better control over the welding arc. Variable Color technology, choose between shades of natural (A), cool (B) or warm (C) for dark mode. Choose yourself which color tones give the best contrast when welding and feel most comfortable to the eyes. Easy-to-use control panel, where you manage the functions easily. Powered by 1 pc 3 V Lithium battery (CR2450). The welding glass is also equipped with a Bluetooth function, easily paired with a smartphone. With the 3M Connected Equipment app, there is access to additional functions; Program up to ten memory settings (dark density, sensitivity, delay, etc.). Easy to keep a log in the app of the maintenance of your welding helmet. Statistical information immediately: when your welding glass was first activated, how long it has been in operation, hours in dark mode, hours in light mode and number of operating cycles (on/off). Access the user manual and accessory lists.
Comes complete with welding helmet G5-01, welding glasses G5-01VC, Adflo high altitude fan unit with QRS self-adjusting air hose, adapter, air flow meter, filter, belt, heavy duty battery, charger and storage bag and starter kit with consumables; 3 different sweatbands, 4 outer protective glasses, 2 inner protective glasses, 1 visor glass, 1 face seal and 1 flame retardant hose cover.
Conforms to EN 175:B, EN 379, EN 166:B, EN 12941 (TH3) / NPF 500. Classification 1/1/1/2.

Complete package with welding helmet G5-01, auto-dimming welding glasses G5-01TW and Adflo fan-assisted respirator.
Welding helmet with high comfort and low weight, headband with self-adjusting forehead relief, adjustable air channel system and face seal with easy and safe adjustment. Designed for heavy duty high current welding such as MMAW, MIG/MAG, TIG welding, spot welding and plasma cutting and grinding. Flip-up function that makes it easy to switch between welding and grinding while maintaining fan-assisted breathing protection.
Welding glasses with adjustable dark tightness degrees 5 (cutting) and 8-13. Bright mode with density level 3. Turnover time from light to dark in 0.1 ms. Viewing surface when welding 73x109 mm, viewing surface for grinding visor 170x104 mm. Natural Color technology, colors become clearer and more realistic in both light and dark mode. Also provides a more realistic field of view for better control over the welding arc. Easy-to-use control panel, where you manage the functions easily. Powered by 1 pc 3 V Lithium battery (CR2450). The welding glass is also equipped with a Bluetooth function, easily paired with a smartphone. With the 3M Connected Equipment app, there is access to additional functions; Program up to ten memory settings (dark density, sensitivity, delay, etc.). Easy to keep a log in the app of the maintenance of your welding helmet. Statistical information immediately: when your welding glass was first activated, how long it has been in operation, hours in dark mode, hours in light mode and number of operating cycles (on/off). Access the user manual and accessory lists.
Comes complete with welding helmet G5-01, welding glasses G5-01TW, Adflo high altitude fan unit with QRS self-adjusting air hose, adapter, air flow meter, filter, belt, heavy duty battery, charger and storage bag and starter kit with consumables; 3 different sweatbands, 4 outer protective glasses, 2 inner protective glasses, 1 visor glass, 1 face seal and 1 flame retardant hose cover.
Conforms to EN 175:B, EN 379, EN 166:B, EN 12941 (TH3) / NPF 500. Classification 1/1/1/1.

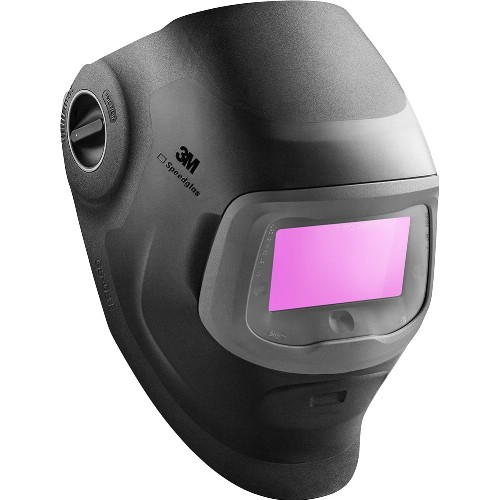

Welding helmet with arched automatic dimming welding glasses. The helmet is specially designed for advanced TIG welding and sets a new standard for sharpness on welding glasses. Also suitable for MMA, MIG/MAG welding and plasma cutting.
With Curved Glass technology, the welding glass follows the curvature of the head and is more in line with your peripheral vision. The curved glass enables a helmet with a narrower profile and wider field of vision. Visible surface of 150x76 mm. The combination of the curved welding glass and a narrower helmet reduces reflections and other distracting glare inside the helmet.
The design of the helmet means that the center of gravity is close to the center of the head, which provides better weight distribution. Innovative design for the ventilation of exhaled air to reduce heat and moisture, providing high comfort.
Welding glass with advanced electronics with four arc sensors, the welding glass switches reliably even at very low TIG settings (1 amp), which meets TIG+ standard according to ISO 16321. Variable density 8-12 and light density 2.5. Turnover time from light to dark in 0.1 ms. Natural Color technology, colors become clearer and more realistic in both light and dark mode. Also provides a more realistic field of view for better control over the welding arc. Easy-to-use control panel, where you manage the functions easily; Bluetooth ON, Density Lock, Delay, Density 8-12 (+/-) and Sensitivity (+/-). The most used controls (density and sensitivity) are located where they are easiest to access, in the lower left and right corners. Powered by 1 pc 3 V Lithium batteries (CR2450).
The welding glass is also equipped with Bluetooth function, easily pairs with smartphone. With the 3M Connected Equipment app there is access to additional functions;
Program up to ten memory settings (dark density, sensitivity, delay, etc.).
Easy to keep a log in the app of the maintenance of your welding helmet.
Statistical information directly: when your welding glass was first activated, how long it has been in operation, hours in dark mode, hours in light mode and number of operating cycles (on/off).
Access the user manual and accessory lists.
Weight : 535 g.
Complies with EN 379:2003+AI:2009, EN 166:F, EN 175:F, TIG+ standard according to ISO 16321.

Speedglas 100V is an easy-to-use and comfortable welding visor with simpler functions. The automatic welding glass has five degrees of tightness in the dark mode, DIN 8 to 12, and has three sensitivity modes to ensure reliable detection of the welding arc. Speedglas 100 is perfect for welders who mainly weld with electrode, MIG/MAG and some types of TIG and who do not weld all day. Speedglas 100V is available in black standard design and in graphic printing with a number of different motifs. The graphics are made in a very durable, varnished lamination that is easy to wipe down and keep clean. The welding glass is powered by 2 CR2032 batteries.
Conforms to EN 379.

Comfortable and protective welding helmet. Automatic dimming function and a patented exhalation valve to get the exhaled air out more efficiently and quickly, which means that fogging on the welding glass is reduced. It also reduces the risk of increased heat, humidity, carbon dioxide content and foul air inside the visor. With the delay function, the user can set the desired cover time from dark to light mode. Arc detection sensitivity can be set to provide the most reliable coverage for a range of welding processes, amperages and situations. The welding glass can also be locked at the desired degree of tightness, so that it functions as a passive welding glass either in the light position for grinding or in one of the dark positions. The welding glass is powered by 2 batteries CR2032.
SW = Side window.
Welding glass 9100V - Viewing surface 45x93 mm.
Welding glass 9100X - Viewing surface 54x107 mm.
Welding glass 9100XX - Viewing surface 73x107 mm.
Welding glass 9100XXi - External control for grinding / memory modes. Improved optics that make it easier to distinguish colors. Visible surface 73x107 mm.
Conforms to EN 379.

Welding helmet prepared for respiratory protection. Integrated air channel provides airflow to the entire helmet. Quick Release Swivel makes the air hose easy to put in place with one hand. Larger field of view with side window, tightness level 5.
Supplied without welding glass. To be completed with welding glasses 9100V, 9100X, 9100XX or 9100XXi.
Complies with EN 379 and EN 175.

Welding helmet 9100 Air with Adflo fan-assisted breathing protection with QRS coupling. Helmet with integrated air channel that provides a refreshing air flow to the entire welding visor. Side window. Comfortable headband with steering wheel adjustment. Breathing tube with QRS connection for easy handling. Adflo fan unit provides a continuous air flow, protects breathing and increases comfort throughout the working day. Supplied with complete Adflo fan unit incl. hose, battery, charger and particle filter. Welding glass not included. The helmet must be supplemented with welding glasses with an automatic dimming function (9100V, 9100X, 9100XX or 9100XXi).
Complies with SS-EN 12941 TH2.

Welding helmet 9100-QR with safety helmet H-701 and welding glasses 9100. Designed to fit many of the industry's most popular safety helmets. With the QR rail mounted, you can easily remove the welding visor and keep your safety helmet on while performing tasks other than welding. Welding glasses with variable dimmed position 5, 8, 9-13 for most types of arc welding. Possible to lock in all shading, e.g. in light mode 3 when grinding. Delay function to set dark-to-light opening time. Arc detection sensitivity can be adjusted for unmatched switching reliability. The tack welding comfort mode helps to minimize eye strain during prolonged tack welding. The welding glass is powered by 2 batteries CR2032.
Welding glass 9100V - Visible surface 45x93 mm.
Welding glass 9100X - Visible surface 54x107 mm.
Welding glass 9100XX - Visible surface 73x107 mm.
Welding glass 9100XXi - External control for grinding / memory modes. Improved optics that make it easier to distinguish colors. Visible surface 73x107 mm.

Complete protective helmet SR 580 with welding visor SR 584 which, together with the battery-powered fan SR 500 or SR 700 and approved filters, are part of Sundström's fan-assisted breathing protection system. Can also be used together with compressed air additive SR 507, this combination constitutes a breathing apparatus with continuous air flow for connection to compressed air. The combinations protect against harmful gases/particles, radiation and splashes during welding, cutting, grinding and similar work. The design makes them useful for work in narrow and hard-to-reach spaces. The equipment can be used as an alternative to filter protection in all situations where such is recommended. This applies in particular to heavy, hot or long-term work. Protective helmet with flip-up visor. Protects the breathing zone and the head. Adjustable head position. Replaceable flexible breathing hose that connects to the filter-equipped fan. Equipped with exhalation valve. Standard attachment for earmuffs. The positive pressure in the helmet's visor prevents particles and other contaminants from entering the breathing zone. The flip-up welding visor is delivered mounted on the helmet, with EN 10 welding glass and polycarbonate protective glass (dimensions 90x110 mm). Accessories in the form of automatic welding glasses, correction glasses, neck and chest protection and hose protection are available.
Contents: Safety helmet SR 580, breathing hose, welding visor SR 584 with degree of darkness EN 10, cleaning napkin SR 5226 and instructions for use.< BR>Usage temperature: -10°C - +55°C
Assigned protection factor: 100 (3A, 3B), 200 (TH3)
Nominal protection factor: 200 (3A, 3B), 500 (TH3)
Darkness level: EN 10
Weight: 1390 g
< BR>Approved/Certified according to:
EN 12941:1998 + A2:2008
EN 14594:2005
EN 397
EN 175:1997
EN 166

Automatic dimming welding helmet. External, stepless adjustment of degree of darkness DIN 9-13. Internal adjustment of the sensitivity and delay. 2 sensors. Light and comfortable and with good visibility, viewing area 100x49 mm. Made of impact-resistant polyamide nylon. Powered by 2 CR2032 batteries (included) which are charged via the solar panel.
Conforms to EN 175 and EN 379.

(HTML text not available)

Welding helmet with fold-up visor with fixed degree of darkness DIN 10 and viewing area of ??60x110 mm. Lightweight helmet shell with comfortable headband. Fold-up visor frame where the welding glass is mounted. Interchangeable welding glasses. Equipped with inner plastic protective glass that protects the face when the visor is folded up.
Weight: 560 g.
CE approved according to EN175.

Welding helmet with a lightweight shell that protects against heat, sparks and spray. Suitable for MIG/MAG welding (GMAW), TIG welding (GTAW), plasma arc welding (PAW), electrode welding (SMAW/MMA), gas cutting, plasma cutting and grinding. Ergonomic 3-point head harness that is easily adjusted for optimal comfort and balance. Automatic blinding cassette, classification 1/1/1/2, DIN 9-13. Visible surface 100x50 mm. Knob for adjusting the degree of darkness on the outside of the helmet shell. Button for activating grinding mode (DIN 4) on the outside of the helmet shell. Controls for setting sensitivity and delay inside the helmet. Adjustable delay from dark to light 0.1-0.9 s. True Color technology for clearer vision and improved color definition. The cassette warns of low battery voltage. Powered by solar cells and 2 CR2450 lithium batteries.
Weight: 500 g.
Conforms to standards CE, EN379, EN175, ANSI, CSA, AS/NZS.

Welding helmet prepared for fresh air unit Powered Air Purifying Respirator (PAPR). Automatic blinding cassette with viewing area 100x60 mm, classification 1/1/1/2, DIN 5-13. Adjustable reaction time (from dark to light) 0.1- 1.0 sec. Revolutionary helmet shell design made of highly impact and impact resistant nylon. High comfort and good visibility. Halo head harness, ergonomic 5-point head harness that can be adjusted in an infinite number of ways for optimal comfort and balance. When grinding, a grinding mode (DIN 4) can be activated with a button on the outside of the helmet shell. Simple control panel with colored touch buttons for settings. Powered by solar cell and 2 replaceable batteries (CR2450 lithium). Warns of low battery voltage. Used in welding processes GMAW (MIG/MAG), GTAW (TIG), PAW (plasma arc welding), SMAW / MMA (Stick), plasma cutting and grinding.
Supplied with welding cartridge, air duct and face seal. Fresh air unit not included.
Weight: 830 g.
Complies with standards DIN plus, CE, EN175, EN 379, EN166, ANSI Z87.1, CSA Z94. 3, AS/NZS 1338.1, EN 12941 Class TH3 P R SL.

The Sentinel A60 welding helmet takes your welding to the next level with panoramic vision and perfect 1/1/1/1 EN optical clarity. Now you get an even wider view of the melt pool without any distortion. The redesigned auto-darkening filter (ADF) has a new OpTCS wide-spectrum light control technology from ESAB. This provides improved visibility with true color reproduction and reduced eye fatigue for the most demanding days at work. New darkness adjustments in 0.5 steps give you more precise control over your view. The Sentinel's signature shell design, fully adjustable Halo headband and external grind mode button make it the most comfortable, high performance helmet ESAB has ever produced.
Comes with two inner spare lenses, four outer spare lenses, carrying case, welding cap and safety manual.

The Sentinel A60 Air welding helmet builds on the advances of the standard Sentinel A60 helmet and takes your welding to the next level. A large panoramic view and perfect 1/1/1/1 EN optical clarity provide an even wider view of the melt bath without any distortion. The redesigned auto-darkening filter (ADF) features a new OpTCS wide-spectrum light control technology from ESAB, which giving you improved visibility with true color reproduction and reduced eye fatigue for the most demanding days at work. New adjustment of the degree of darkness in steps of 0.5 gives you more precise control over the view. The shell retains Sentinel's signature shell design and has a new air diffuser screen. A fully adjustable Halo headband and an external grind mode button complete the most comfortable, high-performance helmet ESAB has ever produced.
Comes with two inner spare lenses, four outer spare lenses, carrying case, welding cap and safety manual.

Welding and grinding helmet with unique construction. Outer folding welding visor with degree of darkness DIN 10. Large inner visor with degree of darkness DIN 2 for grinding. Interchangeable inner and outer visor glass. Lightweight helmet shell and comfortable headband. The visor provides effective protection against UV and IR radiation both when the visor is raised and when it is lowered. Main beam with air duct is available as an accessory to connect to fan unit.

Specially designed for narrow places where it is not possible to work with a traditional welding mask. The material is made of genuine leather and therefore breathes and also adapts to the user's head shape. Effectively protects the welder's entire main area from sparks and splashes. Equipped with a neck-protecting leather neck piece.
Welding glass size: 60x110 mm, darkness DIN 9 Gradually opening glass hatch that can be used in a peek-a-boo position
Meets the standard for protective helmets CE / EN 175
